Conception et ingénierie

Design and engineering

  • Fabrication and production process evaluation
  • 3D tool design
  • Progressive, manual, tranfer , draw tool and more
  • Prototyping
  • Existing tools modifications and improvements

Design Process

  • Process development
  • Process design review with the customer
  • Fully 3D tool design in Catia software
  • Final tool design review with the customer

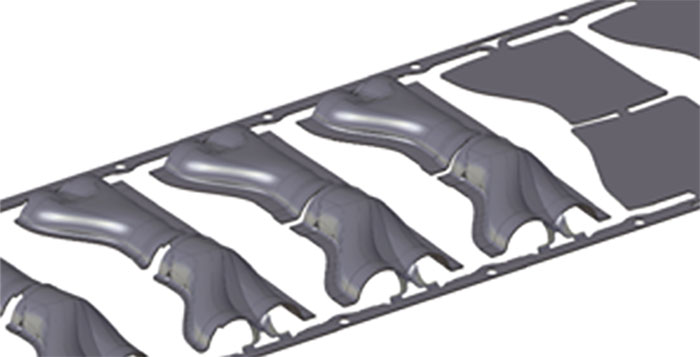

  • Parts and assembly 2D layout
  • 2D and 3D files exportation as per customer request
Processus de conception
Simulation de formabilité

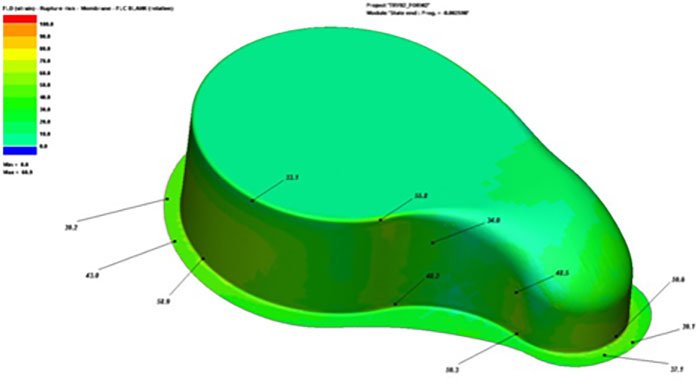

Formability Analysis

Simulation software is used before designing of the tool in order
to obtain a diagnosis of feasibility. For seeing the right trim, springback, split risk and wrinkling allows us to rapidly obtain manufacturable geometry.

Reverse Engineering

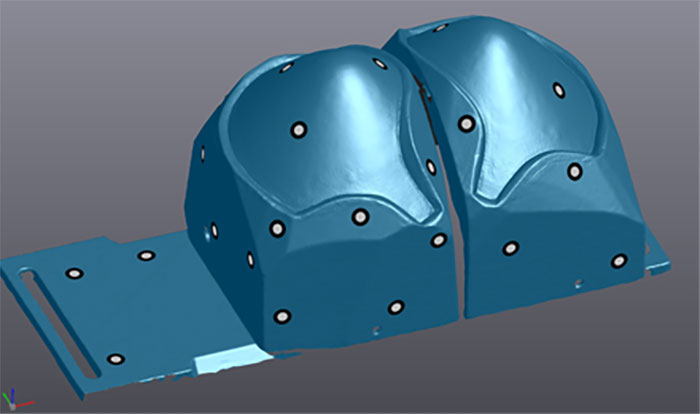

  • 3D portable scanning with Handy Scan 700
  • Mesh improvement with VX Model software
  • Modelling in Catia
  • Numerical inspection by comparison with Polyworks software
  • CMM use for more precision
